B06R series Radial Type Bi-Polarized
                                         無極性立式標準品

l 適用於極性反轉回路,例如:信號交連或HI-FI高級音響設備如
     喇叭、分音器等。
l 具容量誤差小,頻率響應高之特質。

l N06R series capacitors are suitable for crossover network,
   HI-FI audio equipment, speakers, and etc.
l With excellent frequency characteristic and small deviation
   of capacitance.



                     p44 ERC.jpg (16022 bytes)
specifications

No.

Item

Performance



1


使用溫度範圍
     Operating
  Temperature Range



-40 to+85º c



2


額定電壓範圍
    Rated Working
    Voltage Range



50
100v.DC



3


靜電容量範圍
  Nominal Capacitance
  Range



1.0
220µ F



4


靜電容量容許差
    Capacitance
    Tolerance



±
2.5%(H)   ± 5%(J)    ± 10%(K) ± 20%(M)         (at+20°c ,1KHz)



5


漏洩電流
  Leakage Current


I
£ 0.04CV + 3(µ A) after charge five minutes



6


損失角
  Dissipation Factor (tan
)
(1KHz\+20ºc)



£ 0.06





7





高溫負荷特性

High Temperature
          Loading


   After 2000hrs. application of DC rated working voltage at +85º c,
   Post test requirements at +20º c ~ +25º c
   The capacitor shall meet the following limits:

  Leakage current £ the   initial specified value
  Capacitance change £ ± 20% of  initial measured value
  Dissipation Factor(tan) £150% of  initial specified value





8



高溫無負荷特性
Shelf Life


   After storage for 500hrs. at +85º c with no voltage applied.
   Post test requirements at +20º c ~ +25º c
   Same limits as high temperature loading.


B06R series Radial Type Bi-Polarized     無極性立式標準品

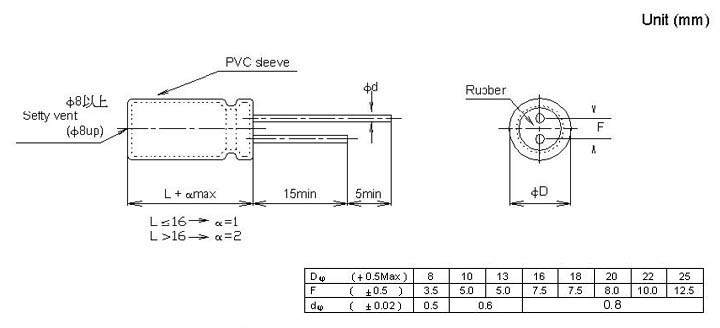

Diagram of Dimensions



Case Size Table                                                                                  øD x L(mm)

        W.V.(SV)

µ F

50

(63)

100

(125)

1.0

8 X 13

8 X 13

1.5

8 X 13

10 X 15

2.2

8 X 13

10 X 15

2.7

8 X 13

10 X 15

3.3

10 X 13

10 X 15

3.9

10 X 15

10 X 15

4.7

10 X 15

10 X 15

5.6

10 X 15

10 X 15

6.8

10 X 20

10 X 20

7.5

10 X 20

10 X 20

8.2

10 X 20

10 X 20

10

10 X 20

10 X 20

12

10 X 20

10 X 20

15

10 X 20

13 X 21

18

10 X 20

13 X 21

22

10 X 20

13 X 21

27

13 X 21

13 X 21

33

13 X 21

13 X 26

47

13 X 26

16 X 27

56

13 X 26

16 X 27

68

13 X 26

16 X 27

75

13 X 26

16 X 27

82

13 X 26

16 X 27

100

16 X 27

16 X 36

120

16 X 27

16 X 36

150

16 X 27

16 X 36

180

16 X 36

18 X 36

220

18 X 36

22 X 37

  • The above table for standard value .
  • Any special value are acceptable, Its size to be provided upon requested.
