B12A series Axial Type Bi-Polarized
                                 無極性臥式標準品

l 適用於極性反轉回路,例如:信號交連或HI-FI高級音響設備如
     喇叭、分音器等。
l 具容量誤差小,頻率響應高之特質。

l B12A series capacitors are suitable for crossover network,
    HI-FI audio equipment, speakers, and etc.
l With excellent frequency characteristic and small deviation
    of capacitance.



                   p44 ERC.jpg (16022 bytes)
specifications

No.

Item

Performance



1


使用溫度範圍
Operating
  Temperature Range



-40 to+85ºc



2


額定電壓範圍
Rated Working
Voltage Range



50
100v.DC



3


靜電容量範圍
Nominal Capacitance
Range



1.0
1000µ F



4


靜電容量容許差
Capacitance
Tolerance



   ± 10%(K) ± 20%(M)         (at+20°c ,1KHz)


5


漏洩電流
Leakage Current


I
£ 0.04CV + 3(µ A) after charge five minutes



6


損失角
Dissipation Factor(tan
)
(1KHz\+20ºc)



£ 0.12





7





高溫負荷特性
High Temperature
Loading


   After 2000hrs. application of DC rated working voltage at +85ºc,
   Post test requirements at +20ºc ~ +25ºc
   The capacitor shall meet the following limits:

  Leakage current £ the   initial specified value
  Capacitance change £ ± 20% of  initial measured value
  Dissipation Factor(tan) £150% of  initial specified value





8



高溫無負荷特性
Shelf Life


   After storage for 500hrs. at +85º c with no voltage applied.
   Post test requirements at +20º c ~ +25º c
   Same limits as high temperature loading.


B12A series Axial Type Bi-Polarized     無極性臥式標準品

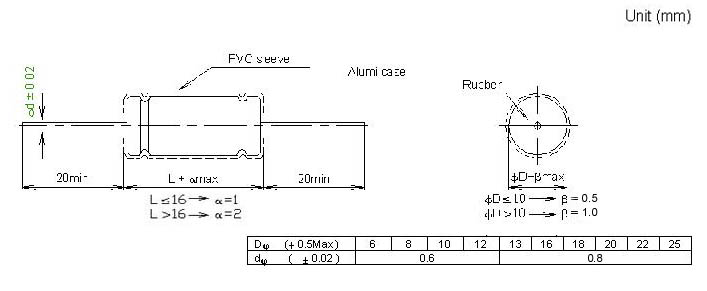

Diagram of Dimensions



Case Size Table                                                                                  øD x L(mm)

                 W.V.(SV)

µ F

50

(63)

100

(125)

1.0

6 X 16

8 X 17

1.5

6 X 16

8 X 17

2.2

6 X 16

8 X 17

2.7

6 X 16

8 X 17

3.3

6 X 16

8 X 17

3.9

6 X 16

8 X 17

4.7

8 X 17

8 X 17

5.6

8 X 17

10 X 19

6.8

8 X 17

10 X 19

7.5

8 X 17

10 X 19

8.2

8 X 17

10 X 19

10

10 X 19

10 X 19

12

10 X 19

10 X 19

15

10 X 19

10 X 19

18

10 X 19

12 X 26

22

10 X 19

12 X 26

27

10 X 19

12 X 26

33

10 X 19

12 X 26

47

12 X 26

12 X 31

56

12 X 26

12 X 31

68

12 X 26

13 X 31

75

12 X 31

13 X 31

82

12 X 31

13 X 31

100

12 X 31

16 X 34

120

12 X 31

16 X 34

150

12 X 31

16 X 42

180

16 X 34

16 X 42

220

16 X 34

18 X 42

270

16 X 34

18 X 42

330

16 X 34

22 X 45

390

16 X 42

22 X 45

470

18 X 42

25 X 52

560

18 X 42

25 X 52

680

22 X 45

25 X 56

750

22 X 45

25 X 56

820

25 X 46

25 X 56

1000

25 X 52

25 X 60

  • The above table for standard value .
  • Any special value are acceptable, Its size to be provided upon requested.
