B06A series Axial Type Bi-Polarized
                                         無極性臥式標準品

l 適用於極性反轉回路,例如:信號交連或HI-FI高級音響設備如
     喇叭、分音器等。
l 具容量誤差小,頻率響應高之特質。

l B06A series capacitors are suitable for crossover network,
    HI-FI audio equipment, speakers, and etc.
l With excellent frequency characteristic and small deviation
    of capacitance.



                     p44 ERC.jpg (16022 bytes)
specifications

No.

Item

Performance



1


使用溫度範圍
     Operating
Temperature Range



-40 to+85ºc



2


額定電壓範圍
Rated Working
Voltage Range



50
100v.DC



3


靜電容量範圍
Nominal Capacitance
Range



1.0
220µ F



4


靜電容量容許差
    Capacitance    Tolerance



±
2.5%(H)   ± 5%(J)    ± 10%(K) ± 20%(M)         (at+20°c ,1KHz)



5


漏洩電流
Leakage Current


I
£ 0.04CV + 3(µ A) after charge five minutes



6


損失角
Dissipation Facto (tan
)
(1KHz\+20ºc)



£ 0.06






7





高溫負荷特性
High Temperature
Loading


   After 2000hrs. application of DC rated working voltage at +85ºc ,
   Post test requirements at +20º c ~ +25ºc
   The capacitor shall meet the following limits :

  Leakage current £ the   initial specified value
  Capacitance change £ ± 20% of  initial measured value
  Dissipation Factor(tan) £150% of  initial specified value





8



高溫無負荷特性
Shelf Life


   After storage for 500hrs. at +85º c with no voltage applied.
   Post test requirements at +20º c ~ +25º c
   Same limits as high temperature loading.


B06A series Axial Type Bi-Polarized     無極性臥式標準品

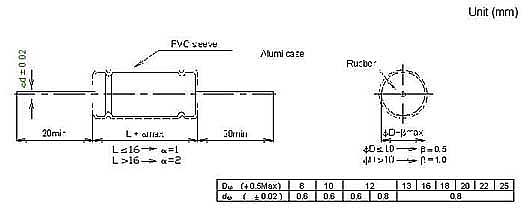

Diagram of Dimensions



Case Size Table                                                                                  øD x L(mm)

        W.V.(SV)

µ F

50

(63)

100

(125)

1.0

8 X 17

10 X 19

1.5

8 X 17

10 X 19

2.2

8 X 17

10 X 19

2.7

8 X 17

10 X 19

3.3

8 X 17

10 X 19

3.9

10 X 19

10 X 19

4.7

10 X 19

10 X 19

5.6

10 X 19

10 X 19

6.8

10 X 19

12 X 26

7.5

10 X 19

12 X 26

8.2

10 X 19

12 X 26

10

12 X 26

12 X 26

12

12 X 26

12 X 26

15

12 X 26

12 X 26

18

12 X 26

12 X 26

22

12 X 26

12 X 31

27

12 X 26

12 X 31

33

12 X 31

12 X 31

47

12 X 31

13 X 31

56

16 X 34

16 X 34

68

16 X 34

16 X 34

75

16 X 34

16 X 34

82

16 X 34

16 X 34

100

16 X 34

16 X 42

120

16 X 34

16 X 42

150

16 X 34

18 X 42

180

16 X 42

18 X 42

220

18 X 42

22 X 45

  • The above table for standard value .
  • Any special value are acceptable, Its size to be provided upon requested.
