ST series screw terminal type 螺絲端子高紋波品
l 本系列是一種特別的設計適用於高紋波電流之高信賴度電容品。
l
適合產業機器之濾波電流、自動控制儀器、高級汽車音響。
l They are specially designed to withstand high ripple
currents
and to attain high reliability.
l
Suitable for filter of industrial equipment, large control devices,
highgrade car stereos.


No.

Item

Performance

1

使用溫度範圍
Operating Temperature
Range

40 to+85º c

25 to+85º c

2

定格電壓範圍
Rated Working Voltage
Range

10100v.DC

160450v.DC

3

靜電容量範圍
Nominal Capacitance
Range

220330,000µ F
(500,000µF, 1,000,000µF 1,5000,000µF/20V
for car stereos are available on request.)

4

靜電容量容許差
Capacitance Tolerance

± 20%(M) (at+20º
c ,120Hz)

5

漏洩電流
Leakage Current

I £ 0.02CV or
5,000(µ A)

I :Leakage Current(µA)
Whichever is greater
after 5 minutes.
C:Rated Capacitage(µF)

V:Working Voitage(v)

6

損失角
Dissipation Factor
(tan)
(120Hz\+20º c)

Working
Voltage
10
16
25
35
50
63
100
160250
350450
tanmax
0.80
0.70
0.45
0.40
0.30
0.25
0.15
0.20
0.25

8

高溫負荷特性
High Temperature
Loading

After 2000hrs. application of DC rated working voltage at +85º
C,
The capacitor shall meet the following limits:
Post test requirements at +20º C
Leakage current
£
the initial specified value
Capacitance change
£
±15%
of initial measured value
Dissipation Factor(tan)
£175%
of initial specified value

9

高溫無負荷特性
Shelf Life

After storage for 500hrs. at +85º C with no voltage applied.
Post test requirements at +20º C
same limits as high temperature loading.
Leakage current
£
the initial specified value
Capacitance change
£
±15%
of initial measured value
Dissipation Factor(tan)
£175%
of initial specified value

ST series screw
terminal type 螺絲端子高紋波品

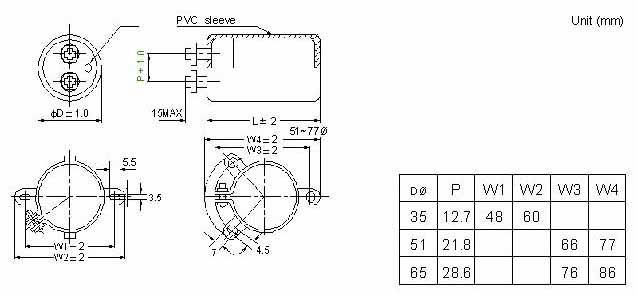

Diagram
of Dimensions
Case
Size Table øD X L(mm)
W.V.(SV)µF

10
(13)
16
(20)
25
(32)
35
(44)
50
(63)
63
(79)
100
(125)
220







330







470







680







1,000







1,500







2,200







3,300







4,700







5,600






35 X 60

6,800





35 X 50

35 X 70

8,200




35 X 50

35 X 60

35 X 80

10,000




35 X 60

35 X 70

35 X 90

15,000



35 X 50

35 X 70

35 X 90

51 X 80

22 000


35 X 50

35 X 70

35 X 90

51 X 70


33 000

35 X 50

35 X 60

35 X 90

51 X 70

51 X 90


47 000
35 X 50

35 X 60

35 X 80

51 X 70

51 X 90



56,000
35 X 60

35 X 70

35 X 90

51 X 80




68,000
35 X 70

35 X 80

51 X 70

51 X 90




100,000
35 X 80

51 X 70

51 X 90





150,000
51 X 70

51 X 90






220,000
51 X 90







330,000
65 X 110








ST series screw
terminal type 螺絲端子高紋波品

Case
Size Table
øD X L(mm)
W.V.(SV)µF

160
(200)
200
(250)
250
(300)
350
(400)
400
(450)
450
(500)
220




35 X 50

35 X 50

330




35 X 60

35 X 70

470



35 X 60

35 X 80

35 X 90

680



35 X 80

35 X 90

51 X 70

1,000
35 X 50

35 X 60

35 X 70

51 X 70

51 X 80

51 X 90

1,500
35 X 60

35 X 70

35 X 80

51 X 90

51 X 90


2,200
35 X 70

35 X 90

51 X 70




3,300
35 X 90

51 X 70

51 X 90




4,700
51 X 70

51 X 90





5,600
51 X 80






6,800
51 X 90






8,200
65 X 100






10,000
65 X 100







Permissible
Ripple Current Max ripple current: A(rms)
(at 85°c.120Hz)
W.V.(SV)
µ F
10
(13)
16
(20)
25
(32)
35
(44)
50
(63)
63
(79)
100
(125)
160
(200)
200
(250)
250
(300)
350
(400)
400
(450)
450
(500)
220











1.50
1.45
330











1.76
1.58
470










2.03
2.39
2.11
680










2.78
3.03
2.47
1,000







2.26
2.62
3.05
3.46
3.80
3.34
1,500







2.99
3.44
3.97
4.73
4.89

2,200







3.64
4.34
4.42



3,300







4.72
4.73
5.61



4,700







5.20
5.60




5,600






3.71
6.01





6,800





3.20
4.38
6.97





8,200




3.28
3.55
5.11
6.50





10,000




3.63
4.11
5.95
7.80





15,000



3.44
4.60
5.64
7.30






22 000


3.93
4.82
6.24
6.31







33 000

4.17
5.20
6.62
7.07
8.61







47 000
4.31
5.38
7.06
7.54
9.40








56,000
5.09
6.28
8.13
8.72









68,000
6.00
7.35
8.28
10.11









100,000
7.72
8.50
11.19










150,000
9.31
11.60











220,000
12.56












330,000
13.50













(※500,000µ F, 1,000,000µ F,
1,500,000µ F / 20V for car stereos are available on
request.)
