HPR series 105º c
基板自立型大電容品
High
Temperature Snap-in Large Size Capacitors
l HPR series是一種高信賴度品具耐高溫、高紋波電流等特性。
l
適用於工業機器之濾波電容、自動化機器、電腦及電源供應器等。
l Highly reliable
capacitors that has characteristics of high
temperature 105º c, and withstand
under high ripple current.
l
Suitable for filter of industrial equipment, such as automatic
machines, computers and switching power supplies, etc.
|
 |
No. |
Item |
Performance |
1
|
使用溫度範圍
Operating Temperature Range
|
-40 to+105ºc
|
-25 to+105º c
|
2
|
定格電壓範圍
Rated Working Voltage
Range
|
10 - 100v.DC
|
160 - 400v.DC
|
3
|
靜電容量範圍
Nominal Capacitance Range
|
330 - 68000µF
|
33 - 2200µ F
|
4
|
靜電容量容許差
Capacitance Tolerance
|
± 20% (at+20º c ,120Hz)
|
5
|
漏洩電流
Leakage Current |
I = 0.02CV or 3000(µ A) max
I :Leakage Current (µ A)
Whichever is greater after 3 minutes.
C:Rated Capacitance (µ F)
V:Working Voltage(v)
|
6
|
損失角
Dissipation Factor
(tan )
(120Hz\+20ºc)
|
|
W.V. µ F |
10-16 |
25-35 |
50-63 |
80-100 |
160-250 |
315-450 |
| 33-470 |
- |
- |
- |
- |
0.15 |
0.20 |
| 560-3300 |
0.25 |
0.20 |
0.20 |
0.20 |
0.15 |
0.20 |
| 4700-6800 |
0.35 |
0.30 |
0.30 |
0.25 |
- |
- |
| 10000-22000 |
0.40 |
0.35 |
0.30 |
- |
- |
- |
| 27000-47000 |
0.45 |
0.40 |
0.35 |
- |
- |
- |
| 56000-68000 |
0.50 |
0.45 |
- |
- |
- |
- |
Less than the value under table
|
7
|
溫度特性(at 120 Hz)
Characteristics at
low temperature
(stability at 120 Hz)
|
Working Voltage |
10 |
16 |
25 |
35 |
50 |
63 |
80 |
100 |
160 |
200 |
250 |
350 |
400 |
-25º c/+25º c |
6 |
6 |
6 |
4 |
3 |
3 |
3 |
4 |
4 |
4 |
4 |
4 |
4 |
|
-40º c/+25º
c
|
15 |
15 |
10 |
8 |
6 |
6 |
6 |
6 |
- |
- |
- |
- |
- |
|
8
|
容許電流
Ripple Current
|
Refer to standard products table (120Hz, +105º c).
Correction factor for frequency.
Ambient Temp |
Multiplying Factor |
45ºc& under |
2.55 |
60º c |
2.25 |
70º c |
1.80 |
105º c |
1.00 |
|
|
HPR series
105º c 基板自立型大電容品
High Temperature Snap-in Large Size Capacitors |
| specifications |
No. |
Item |
Performance |
8
|
容許電流
Ripple Current
|
Refer to standard products table (120Hz,
+105º c).
Correction factor for frequency.
Frequency
|
Multiplying
Factor |
| 10-50V |
63-100V |
160-250V |
315-400V |
| 60Hz |
0.90 |
0.85 |
0.80 |
0.90 |
| 120Hz |
1.00 |
1.00 |
1.00 |
1.00 |
| 300Hz |
1.03 |
1.07 |
1.15 |
1.10 |
| 1kHz |
1.05 |
1.13 |
1.25 |
1.20 |
| 10kHz |
1.10 |
1.19 |
1.35 |
1.30 |
|
9
|
高溫負荷特性
High Temperatrue
Loading
|
After 2000hrs. application of DC rated working
voltage at +105º c,
The capacitor shall meet the following limits:
Post test requirements at +20ºc.
| Leakage current |
£ the
initial specified value |
| Capacitance change |
£ ±20% of initial measured value |
| Dissipation
Factor(tan) |
£200% of initial specified value |
|
10
|
高溫無負荷特性
Shelf Life
|
After storagefor 500hrs.at +105º
c with no voltage applied.
Post test requirements at +20ºc.
same limits as high temperature loading.
|
HPR series 105º c
基板自立型大電容品
High Temperature Snap-in Large Size Capacitors
|
|

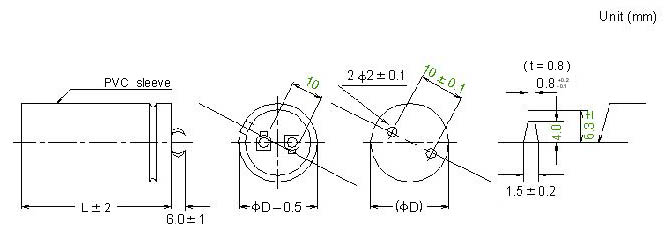

Case Size : øD X L(mm) |
| Case
Size Table & Permissible Ripple Current
Max ripple current : A (rms) |
W. V. |
Cap.(µ F) |
Case Size |
R. C. |
|
W. V. |
Cap.(µ F) |
Case Size |
R. C. |
10
(13) |
4,700 |
22 X 26
|
1.03 |
25
(32) |
6,800 |
22 X 31
|
2.20 |
6,800 |
25 X 26
|
1.30 |
25 X 26
|
2.00 |
|
25 X 26
|
1.35 |
8,200 |
22 X 40
|
2.70 |
8,200 |
22 X 31
|
1.70 |
25 X 31
|
2.50 |
|
25 X 25
|
1.80 |
10,000 |
22 X 41
|
2.90 |
10,000 |
22 X 30
|
1.85 |
25 X 36
|
2.70 |
|
25 X 25
|
1.70 |
12,000 |
22 X 45
|
3.40 |
12,000 |
22 X 30
|
1.95 |
25 X 41
|
3.20 |
|
30 X 25
|
1.90 |
15,000 |
25 X 45
|
3.80 |
15,000 |
22 X 35
|
2.50 |
30 X 36
|
3.70 |
|
25 X 25
|
2.30 |
18,000 |
25 X 51
|
4.20 |
18,000 |
22 X 41
|
2.60 |
30 X 41
|
4.00 |
|
25 X 31
|
2.50 |
22,000 |
30 X 50
|
4.30 |
22,000 |
22 X 41
|
2.70 |
35 X 37
|
4.00 |
|
25 X 25
|
2.60 |
27,000 |
35 X 45
|
4.60 |
27,000 |
22 X 51
|
2.95 |
40 X 40
|
4.30 |
|
25 X 41
|
2.80 |
33,000 |
35 X 50
|
5.10 |
33,000 |
25 X 45
|
3.20 |
35
(44) |
1,500 |
22 X 26
|
1.10 |
|
30 X 36
|
3.10 |
2,200 |
22 X 25
|
1.20 |
39,000 |
25 X 51
|
3.50 |
25 X 25
|
1.10 |
|
30 X 41
|
3.40 |
3,300 |
22 X 25
|
1.60 |
47,000 |
30 X 45
|
3.70 |
25 X 25
|
1.80 |
|
35 X 36
|
3.60 |
3,900 |
22 X 31
|
1.86 |
56,000 |
30 X 51
|
3.90 |
4,700 |
22 X 36
|
2.10 |
|
35 X 42
|
3.60 |
25 X 26
|
2.00 |
68,000 |
35 X 50
|
4.10 |
5,600 |
22 X 36
|
2.50 |
16
(20) |
3,300 |
22 X 25
|
0.98 |
25 X 31
|
2.30 |
4,700 |
22 X 30
|
1.30 |
6,800 |
22 X 40
|
2.70 |
|
25 X 25
|
1.10 |
25 X 36
|
2.50 |
6,800 |
22 X 40
|
1.70 |
8,200 |
22 X 51
|
3.00 |
|
25 X 25
|
1.50 |
25 X 41
|
2.90 |
8,200 |
22 X 30
|
2.00 |
10,000 |
25 X 41
|
3.40 |
|
22 X 45
|
2.70 |
30 X 36
|
3.20 |
10,000 |
22 X 31
|
2.33 |
12,000 |
25 X 50
|
3.70 |
|
25 X 26
|
2.10 |
30 X 41
|
3.50 |
12,000 |
22 X 40
|
2.90 |
15,000 |
30 X 45
|
4.10 |
|
25 X 31
|
2.70 |
35 X 40
|
3.90 |
15,000 |
22 X 45
|
3.20 |
18,000 |
35 X 42
|
4.30 |
|
25 X 41
|
3.10 |
40 X 40
|
3.80 |
18,000 |
22 X 51
|
2.93 |
2,2000 |
35 X 52
|
4.60 |
|
25 X 46
|
2.80 |
40 X 40
|
4.30 |
22,000 |
25 X 46
|
3.40 |
50
(63) |
1,000 |
22 X 26
|
0.70 |
|
30 X 36
|
3.20 |
1,500 |
22 X 25
|
0.90 |
27,000 |
25 X 51
|
3.59 |
22 X 31
|
1.10 |
|
30 X 41
|
3.40 |
1,800 |
22 X 26
|
1.30 |
33,000 |
30 X 45
|
4.10 |
2,200 |
22 X 31
|
1.40 |
|
35 X 40
|
4.00 |
25 X 25
|
1.30 |
39,000 |
22 X 51
|
4.80 |
2,700 |
22 X 36
|
1.70 |
|
35 X 42
|
4.60 |
25 X 25
|
1.60 |
47,000 |
35 X 47
|
5.30 |
3,300 |
22 X 35
|
1.90 |
56,000 |
35 X 52
|
5.90 |
25 X 31
|
1.75 |
25
(32) |
2,200 |
22 X 26
|
0.86 |
3,900 |
22 X 41
|
2.20 |
3,300 |
22 X 31
|
1.25 |
30 X 26
|
1.95 |
|
25 X 26
|
1.10 |
4,700 |
22 X 46
|
2.50 |
4,700 |
22 X 40
|
1.60 |
25 X 40
|
2.30 |
|
25 X 31
|
1.45 |
5,600 |
22 X 51
|
2.60 |
5,600 |
22 X 31
|
1.90 |
25 X 41
|
2.48 |
HPR series 105º c
基板自立型大電容品
High Temperature Snap-in Large Size Capacitors
|
|
Case Size : øD X L(mm) |
| Case
Size Table & Permissible Ripple Current
Max ripple current : A (rms) |
W. V. |
Cap.(µ F) |
Case Size |
R. C. |
|
W. V. |
Cap.(µ F) |
Case Size |
R. C. |
50
(63) |
6,800 |
25 X 51
|
2.72 |
100
(125) |
330 |
22 X 26
|
0.45 |
|
30 X 41
|
2.60 |
470 |
22 X 26
|
0.66 |
8,200 |
30 X 41
|
3.00 |
22 X 31
|
0.85 |
|
35 X 35
|
2.90 |
560 |
22 X 26
|
0.80 |
10,000 |
30 X 51
|
3.50 |
680 |
22 X 41
|
0.90 |
|
35 X 42
|
3.40 |
25 X 31
|
0.80 |
12,000 |
35 X 47
|
3.90 |
820 |
22 X 41
|
1.10 |
15,000 |
35 X 50
|
4.20 |
25 X 31
|
1.00 |
63
(79) |
680 |
22 X 26
|
0.60 |
1,000 |
22 X 36
|
1.20 |
1,000 |
22 X 31
|
0.70 |
25 X 31
|
1.10 |
|
25 X 25
|
0.65 |
1,200 |
22 X 41
|
1.40 |
1,200 |
20 X 30
|
0.95 |
25 X 36
|
1.20 |
|
22 X 26
|
0.82 |
1,500 |
22 X 46
|
1.60 |
1,500 |
22 X 31
|
0.92 |
25 X 41
|
1.40 |
|
25 X 31
|
0.80 |
1,800 |
22 X 46
|
2.20 |
2,200 |
22 X 36
|
1.40 |
25 X 41
|
2.00 |
|
25 X 31
|
1.30 |
2,200 |
25 X 41
|
2.77 |
2,700 |
22 X 41
|
1.80 |
35 X 30
|
2.50 |
|
25 X 36
|
1.60 |
2,700 |
30 X 46
|
3.50 |
3,300 |
22 X 51
|
2.10 |
35 X 37
|
3.40 |
|
25 X 41
|
2.00 |
3,300 |
30 X 51
|
3.90 |
3,900 |
25 X 46
|
2.60 |
35 X 42
|
3.75 |
|
30 X 36
|
2.50 |
3,900 |
35 X 46
|
4.20 |
4,700 |
25 X 41
|
2.80 |
4,700 |
35 X 52
|
4.53 |
|
30 X 41
|
2.80 |
160
(200) |
150 |
22 X 26
|
0.35 |
5,600 |
25 X 46
|
3.30 |
180 |
22 X 26
|
0.60 |
|
30 X 41
|
3.10 |
220 |
22 X 26
|
0.60 |
6,800 |
30 X 51
|
4.00 |
270 |
22 X 26
|
0.62 |
|
35 X 42
|
3.80 |
330 |
22 X 31
|
0.75 |
8,200 |
35 X 47
|
4.20 |
25 X 25
|
0.65 |
|
40 X 40
|
3.99 |
390 |
22 X 31
|
0.85 |
10,000 |
35 X 50
|
4.80 |
25 X 25
|
0.80 |
80
(125) |
470 |
22 X 26
|
0.55 |
470 |
22 X 36
|
1.00 |
680 |
22 X 31
|
0.70 |
25 X 31
|
0.98 |
|
25 X 25
|
0.65 |
560 |
22 X 41
|
1.20 |
820 |
22 X 25
|
0.85 |
25 X 31
|
1.10 |
1,000 |
22 X 36
|
0.98 |
680 |
22 X 46
|
1.40 |
|
25 X 26
|
0.95 |
25 X 36
|
1.25 |
1,200 |
22 X 31
|
1.30 |
820 |
25 X 41
|
1.50 |
|
25 X 26
|
1.10 |
30 X 31
|
1.35 |
1,500 |
22 X 36
|
1.50 |
1,000 |
25 X 46
|
1.80 |
|
25 X 31
|
1.30 |
30 X 36
|
1.70 |
1,800 |
22 X 41
|
1.70 |
1,200 |
25 X 51
|
1.90 |
|
25 X 36
|
1.50 |
30 X 41
|
1.75 |
2,200 |
25 X 41
|
1.90 |
1,500 |
30 X 46
|
2.30 |
|
25 X 36
|
1.70 |
35 X 37
|
2.10 |
2,700 |
25 X 46
|
2.30 |
1,800 |
30 X 51
|
2.60 |
|
30 X 41
|
2.20 |
35 X 42
|
2.30 |
3,300 |
25 X 45
|
2.80 |
2,200 |
35 X 51
|
2.90 |
|
30 X 41
|
2.60 |
200
(250) |
100 |
22 X 26
|
0.32 |
3,900 |
30 X 41
|
3.20 |
150 |
22 X 31
|
0.45 |
|
35 X 37
|
3.10 |
22 X 25
|
0.40 |
4,700 |
30 X 45
|
3.60 |
220 |
22 X 25
|
0.61 |
|
35 X 40
|
3.40 |
25 X 31
|
0.50 |
5,600 |
30 X 50
|
4.20 |
270 |
22 X 31
|
0.80 |
|
35 X 41
|
4.00 |
25 X 26
|
0.75 |
6,800 |
35 X 45
|
4.80 |
330 |
22 X 30
|
0.85 |
HPR series 105º c
基板自立型大電容品
High Temperature Snap-in Large
Size Capacitors
|
|
Case Size : øD X
L(mm) |
| Case
Size Table & Permissible Ripple Current
Max ripple current : A (rms) |
W. V. |
Cap.(µ F) |
Case Size |
R. C. |
|
W. V. |
Cap.(µ F) |
Case Size |
R. C. |
200
(250) |
330 |
25 X 25 |
0.80 |
400
(450) |
33 |
22 X 26 |
0.34 |
390 |
22 X 36 |
1.00 |
47 |
22 X 25 |
0.47 |
25 X 31 |
0.95 |
25 X 25 |
0.42 |
470 |
22 X 40 |
1.10 |
56 |
22 X 26 |
0.57 |
25 X 30 |
1.00 |
68 |
22 X 25 |
0.60 |
560 |
22 X 45 |
1.30 |
82 |
22 X 25 |
0.69 |
25 X 36 |
1.20 |
100 |
22 X 30 |
0.68 |
680 |
25 X 40 |
1.50 |
25 X 25 |
0.65 |
30 X 31 |
1.40 |
120 |
22 X 30 |
0.75 |
820 |
25 X 50 |
1.60 |
150 |
22 X 50 |
0.82 |
35 X 36 |
1.50 |
25 X 41 |
0.80 |
1,000 |
30 X 41 |
1.90 |
180 |
25 X 50 |
0.95 |
35 X 36 |
1.80 |
30 X 36 |
0.88 |
1,200 |
30 X 51 |
2.00 |
220 |
25 X 50 |
1.10 |
1,500 |
35 X 45 |
2.25 |
30 X 41 |
1.00 |
2,200 |
35 X 51 |
2.83 |
270 |
30 X 46 |
1.10 |
250
(300) |
68 |
22 X 26 |
0.23 |
35 X 37 |
1.08 |
100 |
22 X 31 |
0.37 |
330 |
30 X 50 |
1.20 |
25 X 26 |
0.35 |
35 X 30 |
1.10 |
120 |
22 X 25 |
0.37 |
390 |
35 X 47 |
1.28 |
150 |
22 X 41 |
0.50 |
470 |
35 X 52 |
1.34 |
25 X 31 |
0.45 |
--- |
--- |
180 |
22 X 31 |
0.58 |
25 X 26 |
0.55 |
220 |
22 X 31 |
0.67 |
25 X 26 |
0.65 |
270 |
22 X 36 |
0.85 |
25 X 31 |
0.75 |
330 |
22 X 40 |
0.95 |
25 X 36 |
0.90 |
390 |
22 X 46 |
1.10 |
25 X 36 |
1.00 |
470 |
22 X 50 |
1.20 |
25 X 41 |
1.10 |
560 |
25 X 51 |
1.40 |
30 X 36 |
1.30 |
680 |
30 X 46 |
1.60 |
35 X 37 |
1.50 |
820 |
30 X 51 |
1.70 |
35 X 42 |
1.60 |
1,000 |
35 X 47 |
1.78 |
1,200 |
35 X 52 |
2.20 |
350
(400) |
100 |
22 X 30 |
0.48 |
25 X 25 |
0.40 |
120 |
22 X 30 |
0.75 |
25 X 25 |
0.70 |
150 |
22 X 41 |
0.80 |
25 X 30 |
0.75 |
180 |
22 X 41 |
0.80 |
25 X 30 |
0.78 |
220 |
22 X 45 |
0.85 |
25 X 41 |
0.80 |
270 |
25 X 41 |
0.90 |
30 X 41 |
0.85 |
330 |
30 X 41 |
1.09 |
35 X 35 |
1.00 |
390 |
30 X 45 |
1.20 |
|
Sang Jing Electronics Co., Ltd.
