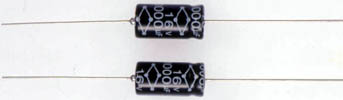

AX series 105ºc
Axial Type Capacitors
高 溫 度 標 準 品
l本系列為高CV值，適用於一般民生電子產品，有防爆孔設計，
在105ºc 常溫下，耐用2000小時。
l
For general purpose.
l
Wide CV value range.
l Safely
vent construction products, AX series are guaranteed 2,000 huours
at 105°c. |
 |
No. |
Item |
Performance |
1
|
使用溫度範圍
Operating Temperature Range
|
-40 to+105º c
|
-25 to+105º c
|
2
|
定格電壓範圍
Rated Working Voltage Range
|
6.3 - 100v.DC
|
160 - 400v.DC
|
3
|
靜電容量範圍
Nominal Capacitance Range
|
0.47 - 15000µ F
|
0.47 - 220µ F
|
4
|
靜電容量容許差
Capacitance Tolerance
|
± 20% (at+20º c ,120Hz)
|
5
|
漏洩電流
Leakage Current
|
l £ 0.01CV or 3(µ A) max |
I £ 0.03CV +
20(µ A) max |
I :Leakage Current (µ A)
Whichever is greater after 3 minutes.
C:Rated Capacitance (µ F)
V:Working Voltage(v)
|
6
|
損失角
Dissipation Factor
(tan )
(120Hz\+20º c)
|
| Working Voltage |
6.3 |
10 |
16 |
25 |
35 |
50 |
63 |
100 |
160 |
200 |
250 |
350 |
400 |
450 |
| tan
max |
0.22 |
0.19 |
0.16 |
0.14 |
0.12 |
0.10 |
0.10 |
0.07 |
0.15 |
0.15 |
0.15 |
0.20 |
0.24 |
0.24 |
Add 0.02 per 1000 µ F for more than 1000µ F.
|
7 |
最大容許電流
Maximum Permissible
Ripple Current
|
Refer to standard products
table(120Hz,+105º c)
Correction factor for frequency.
Freq.(Hz)
W. V. (V. DC.) |
60 |
120 |
1K |
10K |
100K |
6.3-50 |
0.1-330 |
0.85 |
1 |
1.30 |
1.40 |
1.55 |
470-3300 |
0.95 |
1 |
1.15 |
1.20 |
1.25 |
|
4700
|
0.95 |
1 |
1.10 |
1.20 |
1.20 |
63-100 |
0.47-33 |
0.75 |
1 |
1.55 |
1.65 |
1.80 |
47-220 |
0.75 |
1 |
1.40 |
1.60 |
1.65 |
|
330
|
0.80 |
1 |
1.30 |
1.35 |
1.40 |
|
160
|
1-220 |
0.70 |
1 |
1.30 |
1.70 |
1.70 |
|
8
|
溫度特性(at 120 Hz)
Characteristics at
low temperature
(stability at 120 Hz)
|
Working Voltage |
6.3 |
10 |
16 |
25 |
35 |
50 |
63 |
100 |
160 |
200 |
250 |
350 |
400 |
450 |
-25º c/+25º c |
4 |
3 |
2 |
2 |
2 |
2 |
2 |
2 |
3 |
3 |
3 |
6 |
6 |
15 |
-40º
c/+20º c |
8 |
6 |
4 |
3 |
3 |
3 |
3 |
3 |
- |
- |
- |
- |
- |
- |
For capacitance
value >1000 µ F, Add 0.5 per another 1000
µ F for
-25°c/+25°c.Add 1.0 per another 1000µF
for-40°c/+20°c. |
|
|
No. |
Item |
Performance |
9
|
高溫負荷特性
High Temperature
Loading
|
After
2000hrs. application of DC rated working voltage at +105º c,
The capacitor shall meet the following limits:
Post test requirements at +20º c.
| Leakage current |
£ the
initial specified value |
| Capacitance change |
£ ±20% of initial measured value |
| Dissipation
Factor(tan) |
£200% of initial specified value |
|
10 |
高溫無負荷特性
Shelf Life
|
After storage for 500hrs. at +105º c with no voltage applied.
Post test requirements at +20º c
same limits as high temperature loading.
|
| Permissible
Ripple Current
Max ripple current: mA (rms) (at
105oc.120HZ) |
W.V(SV)
µ F |
6.3
(8) |
10
(13) |
16
(20) |
25
(32) |
35
(44) |
50
(63) |
63
(79) |
100
(125) |
160
(200) |
200
(250) |
250
(300) |
350
(400) |
400
(450) |
0.1 |
--- |
--- |
--- |
--- |
--- |
7 |
--- |
8 |
8 |
8 |
8 |
9 |
9 |
0.22 |
--- |
--- |
--- |
--- |
--- |
7 |
--- |
8 |
8 |
8 |
8 |
9 |
9 |
0.33 |
--- |
--- |
--- |
--- |
--- |
7 |
--- |
8 |
8 |
8 |
8 |
9 |
9 |
0.47 |
--- |
--- |
--- |
--- |
--- |
8 |
--- |
10 |
9 |
9 |
9 |
10 |
9 |
1.0 |
--- |
--- |
--- |
--- |
--- |
12 |
--- |
15 |
12 |
12 |
12 |
18 |
18 |
2.2 |
--- |
--- |
--- |
--- |
--- |
17 |
--- |
23 |
19 |
19 |
21 |
30 |
30 |
3.3 |
--- |
--- |
--- |
--- |
--- |
21 |
--- |
29 |
26 |
26 |
30 |
37 |
40 |
4.7 |
--- |
--- |
--- |
26 |
28 |
30 |
32 |
34 |
31 |
36 |
36 |
48 |
52 |
10 |
--- |
--- |
35 |
38 |
41 |
46 |
50 |
56 |
59 |
59 |
64 |
79 |
79 |
22 |
--- |
49 |
54 |
57 |
61 |
68 |
82 |
96 |
95 |
95 |
110 |
130 |
145 |
33 |
54 |
60 |
64 |
69 |
75 |
90 |
100 |
140 |
125 |
140 |
140 |
175 |
185 |
47 |
65 |
70 |
99 |
82 |
100 |
110 |
135 |
180 |
165 |
165 |
180 |
230 |
--- |
100 |
95 |
105 |
125 |
135 |
170 |
180 |
223 |
320 |
270 |
285 |
310 |
--- |
--- |
220 |
160 |
175 |
215 |
230 |
300 |
345 |
400 |
570 |
450 |
--- |
--- |
--- |
--- |
330 |
195 |
245 |
260 |
335 |
400 |
460 |
540 |
700 |
--- |
--- |
--- |
--- |
--- |
470 |
270 |
290 |
370 |
440 |
520 |
610 |
700 |
880 |
--- |
--- |
--- |
--- |
--- |
1,000 |
460 |
550 |
640 |
770 |
920 |
1080 |
1210 |
--- |
--- |
--- |
--- |
--- |
--- |
2,200 |
810 |
860 |
1000 |
1170 |
1340 |
1530 |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
3,300 |
960 |
1100 |
1300 |
1460 |
1650 |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
4,700 |
1330 |
1400 |
1600 |
1780 |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
6,800 |
1500 |
1690 |
1900 |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
10,000 |
1765 |
1950 |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
15,000 |
2075 |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
--- |

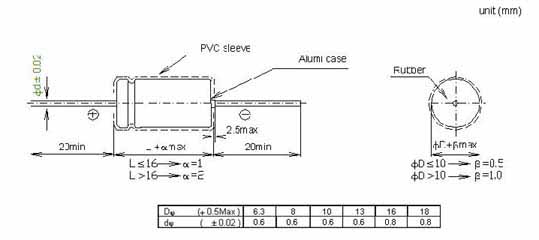

AX series 105ºc
Axial Type Capacitors 高 溫 度 標 準 品
| Case
Size Table
øD X L(mm) |
W.V. (SV)
µ F |
6.3
(8) |
10
(13) |
16
(20) |
25
(32) |
35
(44) |
50
(63) |
63
(79) |
100
(125) |
0.47 |
--- |
--- |
--- |
--- |
® |
6.3 X 13
|
® |
6.3 X 13
|
1.0 |
--- |
--- |
--- |
--- |
® |
6.3 X 13
|
® |
6.3 X 13
|
2.2 |
--- |
--- |
--- |
--- |
® |
6.3 X 13
|
® |
6.3 X 13
|
3.3 |
--- |
--- |
--- |
--- |
® |
6.3 X 13
|
® |
6.3 X 13
|
4.7 |
--- |
--- |
--- |
--- |
® |
6.3 X 13
|
® |
6.3 X 13
|
10 |
--- |
--- |
--- |
--- |
® |
6.3 X 13
|
6.3 X 13
|
6.3 X 16
|
22 |
--- |
--- |
--- |
® |
6.3 X 13
|
6.3 X 16
|
6.3 X 16
|
8 X 16
|
33 |
--- |
--- |
® |
6.3 X 13
|
6.3 X 16
|
6.3 X 16
|
6.3 X 16
|
8 X 21
|
47 |
® |
6.3 X 13
|
6.3 X 13
|
6.3 X 16
|
6.3 X 16
|
6.3 X 16
|
8 X 16
|
8 X 21
|
100 |
6.3 X 13
|
6.3 X 16
|
6.3 X 16
|
6.3 X 16
|
8 X 16
|
8 X 16
|
8 X 21
|
10 X 27
|
220 |
6.3 X 16
|
6.3 X 16
|
8 X 16
|
8 X 16
|
8 X 21
|
10 X 22
|
10 X 27
|
13 X 32
|
330 |
8 X 16
|
8 X 16
|
8 X 16
|
8 X 21
|
10 X 22
|
10 X 27
|
13 X 27
|
13 X 35
|
470 |
8 X 16
|
8 X 16
|
8 X 21
|
10 X 22
|
10 X 27
|
13 X 27
|
13 X 32
|
16 X 43
|
1,000 |
10 X 22
|
10 X 22
|
10 X 27
|
13 X 27
|
13 X 32
|
13 X 35
|
16 X 33
|
--- |
2,200 |
13 X 27
|
13 X 27
|
13 X 32
|
13 X 35
|
16 X 33
|
18 X 43
|
--- |
--- |
3,300 |
13 X 27
|
13 X 32
|
13 X 35
|
16 X 33
|
16 X 43
|
--- |
--- |
--- |
4,700 |
13 X 32
|
13 X 35
|
16 X 33
|
18 X 43
|
--- |
--- |
--- |
--- |
6,800 |
16 X 33
|
16 X 33
|
16 X 43
|
--- |
--- |
--- |
--- |
--- |
10000 |
16 X 43
|
18 X 43
|
--- |
--- |
--- |
--- |
--- |
--- |
15000 |
18 X 43
|
--- |
--- |
--- |
--- |
--- |
--- |
--- |
l All
blank voltage on sleeve marking is the same voltage as “ ®
” point to.
l
空格部分膠管所標示的電壓以“ ® ”右方一格表示
| Case
Size Table
øD X L(mm) |
WW (SV)
µ F |
160
(200) |
200
(250) |
250
(300) |
350
(400) |
400
(450) |
0.47 |
6.3 X 13
|
6.3 X 13
|
6.3 X 13
|
6.3 X 16
|
6.3 X 16
|
1.0 |
6.3 X 13
|
6.3 X 13
|
6.3 X 16
|
8 X 16
|
8 X 16
|
2.2 |
6.3 X 16
|
6.3 X 16
|
8 X 16
|
8 X 21
|
8 X 21
|
3.3 |
8 X 16
|
8 X 16
|
8 X 16
|
10 X 22
|
10 X 22
|
4.7 |
8 X 16
|
8 X 16
|
10 X 22
|
10 X 27
|
10 X 27
|
10 |
10 X 22
|
10 X 22
|
10 X 27
|
13 X 27
|
13 X 27
|
22 |
10 X 27
|
13 X 27
|
13 X 27
|
13 X 32
|
16 X 33
|
33 |
13 X 27
|
13 X 32
|
13 X 32
|
16 X 33
|
16 X 43
|
47 |
13 X 32
|
13 X 32
|
13 X 35
|
18 X 43
|
-- |
100 |
16 X 33
|
16 X 43
|
16 X 43
|
-- |
-- |
220 |
18 X 43
|
-- |
-- |
-- |
-- |
|
Sang Jing Electronics Co., Ltd.
