MEX series Radial Type Coating Plastic Case
         立式硬殼金屬膜標準品


l 多元脂金屬膜捲繞,高絕緣塑膠外殼,底部環氧樹脂封裝,
 具體積小、無感,穩定性佳,有自我修補之特性。

l 適用於天線連接器、旁路電容、線路跨接、交流雜訊濾波等,
 尤其有體積限制之產品。

l MEX series capacitors are made of metallized polyester
    wrapping with plastic case, epoxy resin filled; box made
    of solvent resistant material.
l   With high stability ,non-inductive, miniature size and self-
     healing characteristics.
l   Excellint for use in Antenna coupling, By-pass, Cross-over,
    A. C. Filtering, and etc. Also good for solid-state application
    where size is critical.



                   p44 ERC.jpg (16022 bytes)

specifications

No.

Item

Performance



1


   使用溫度範圍
Operating Temperature Range



-40 to+85ºc



2


額定電壓範圍
Rated Working
Voltage Range



250v.AC   or   275v.AC



3


靜電容量範圍
Nominal Capacitance
Range



0.0047
1.0µF



4


靜電容量容許差
Capacitance
Tolerance



± 5%(J)    ± 10%(K)
± 20%(M)         (at+20°c ,1kHz)



5


絕緣阻抗
Insulation Resistance


C
£ 0.33m F, IR>30,000MW ; C ³ 0.33m F, IR>10,000MW
(Rated Voltage ´ 430%, for 2sec,at+25°c)



6


損失角
Dissipation Factor
(tan
) (1kHz\+25ºc)



£
0.001






7





高溫負荷特性
High Temperature
Loading


   After 1000hrs. adding 140% AC rated working voltage at +85º c,
   Post test requirements at +20º c ~ +25º c
   The capacitor shall meet the following limits:

  Insulation Resistance 30% of   initial value
  Capacitance change Drift with ±3% of   initial value
  Dissipation Factor(tan) £0.12% of  initial value








8






濕度測試
Humidity Load Life
Test



   After 500hrs, application of AC rated working voltage.
   At temperature +60° c and humidity 90~ 95%.
   Post test requirements at +20° c~ +25° c.
   The capacitors shall meet the following limits:

  Insulation Resistance 30% of   initial value
  Capacitance change Drift with ±5% of   initial value
  Dissipation Factor(tan) £0.12% of  initial value




MEX series Radial Type Coating Plastic Case 立式硬殼金屬膜標準品

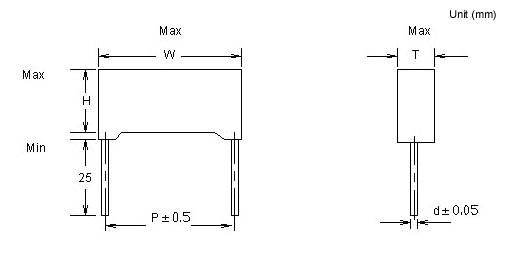

Diagram of Dimensions



Case Size Table                                                                                   (mm)

Capacitance

250v. ~ 275v.~


m
F

Case

Code

W

H

T

P

d

0.0047

C2

13.0

11.0

5.0

10.0

    0.6

0.8

0.0068

C2

13.0

11.0

5.0

10.0

     0.6

0.8

0.01

C2

13.0

11.0

5.0

10.0

     0.6

0.8

0.012

C2

13.0

11.0

5.0

10.0

      0.6

0.8

0.015

C2

13.0

11.0

5.0

10.0

      0.6

0.8

0.018

C2

13.0

11.0

5.0

10.0

      0.6

0.8

0.022

C3

13.0

12.0

6.0

10.0

      0.6

0.8

0.027

C3

13.0

12.0

6.0

10.0

      0.6

0.8

0.033

D1

18.0

11.0

5.0

15.0

0.8

0.039

D1

18.0

11.0

5.0

15.0

0.8

0.047

D1

18.0

11.0

5.0

15.0

0.8

0.056

D1

18.0

11.0

5.0

15.0

0.8

0.068

D2

18.0

12.0

6.0

15.0

0.8

0.082

D2

18.0

12.0

6.0

15.0

0.8

0.1

D2

18.0

12.0

6.0

15.0

0.8

0.12

D3

18.0

13.5

7.5

15.0

0.8

0.15

D4

18.0

14.5

8.5

15.0

0.8

0.18

D4

E1

18.0

26.5

14.5

15.0

8.5

6.0

16.0

22.5

0.8

0.22

E2

26.5

16.5

7.0

22.5

0.8

0.27

E3

26.5

17.0

8.5

22.5

0.8

0.33

E3

26.5

17.0

8.5

22.5

0.8

0.39

E4

26.5

19.0

10.0

22.5

0.8

0.47

E4

F1

26.5

32.0

19.0

20.0

10.0

11.0

22.5

27.5

0.8

0.56

F1

32.0

20.0

11.0

27.5

0.8

0.68

F1

32.0

20.0

11.0

27.5

0.8

0.82

F2

32.0

22.0

13.0

27.5

0.8

1.0

F2

32.0

22.0

13.0

27.5

0.8

  • The above table for standard value .
  • Any special value are acceptable, Its size to be provided upon requested.


MEX series Radial Type Coating Plastic Case 立式硬殼金屬膜標準品

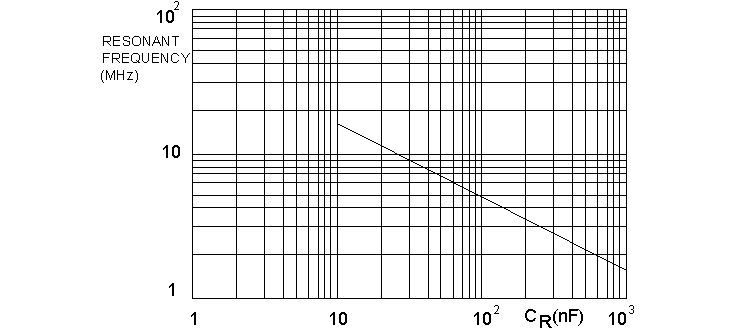

RSONANT FREQUENCY AS A FUNCTION OF RATED CAPACITANCE.



RSONANT FREQUENCY AS A FUNCTION OF RATED CAPACITANCE.
