MHR series Miniaturized
7mm 105º c
超小型品
l 本體之高度縮短至7 mm，適用於輕薄小型化之電子產品。
l
適用於高密度電子設備，例如：OA機器、電子計算機、汽車音響、
迷你音響、攝影機、光碟機、手提電腦••等等。
l
Developed short body length to 7m/m,for the demand of smaller
and thinner electronic equipment.
l Most
suitable for high-density electronic equipment, such as:
automatic office machines, pocket calculators, car stereos and
mini-audio sets, VCR, camera, CD-ROM, notebook , etc. |
 |
No. |
Item |
Performance |
1
|
使用溫度範圍
Operating Temperature Range
|
-40 to+85º c
|
2
|
定格電壓範圍
Rated Working Voltage Range
|
6.3 - 63v.DC
|
3
|
靜電容量範圍
Nominal Capacitance Range
|
0.1 - 470µ F
|
4
|
靜電容量容許差
Capacitance Tolerance
|
± 20% (at+20º c ,120Hz)
|
5
|
漏洩電流
Leakage Current
|
I = 0.01CV or 3(µ A) after two minutes
|
6
|
損失角
Dissipation Factor(tan )
(120Hz\+20º c)
|
| Working Voltage(V) |
6.3 |
10 |
16 |
25 |
35 |
50 |
63 |
| tan
max |
0.24 |
0.20 |
0.16 |
0.14 |
0.12 |
0.10 |
0.08 |
|
7
|
溫度特性(at 120 Hz)
Characteristics at
low temperature
(stability at 120 Hz)
|
Working Voltage(V) |
6.3 |
10 |
16 |
25 |
35 |
50 |
63 |
-25º c/+20º c |
4 |
3 |
2 |
2 |
2 |
2 |
2 |
-40º
c/+20º c |
8 |
6 |
4 |
4 |
3 |
3 |
3 |
|
8
|
高溫負荷特性
High Temperature Loading |
After 1000hrs. application of DC rated working voltage at +105º c,
The capacitor shall meet the following limits :
Post test requirements at +20ºc
| Leakage current |
£ the
initial specified value |
| Capacitance change |
£ ±20% of initial measured value |
| Dissipation
Factor(tan) |
£200% of initial specified value |
|
9
|
高溫無負荷特性
Shelf Life |
After storage for 500hrs. at +105º C
with no voltage applied.
Post test requirements at +20º C
same limits as high temperature loading.
|
10
|
耐洗淨性
Solvent proof |
This capacitor can withstand circuit-board cleaning within 5 min.
dipped in Freon TE,TES, at 40º C
(ultrasonic also permitted)
or in the steam of these cleaners.
|

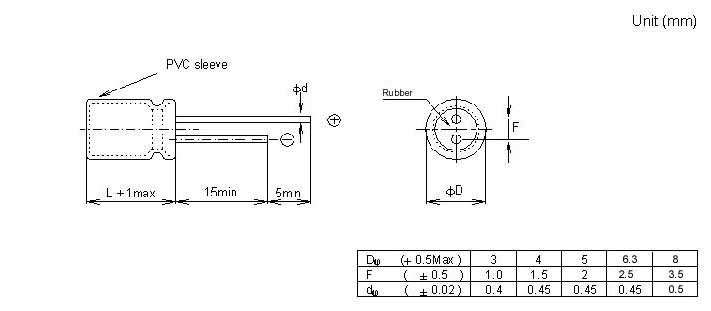

MHR series Miniaturized
7mm 105º c
超小型品
| Case
Size Table
øD x L(mm) |
W.V. (SV)
µ F |
6.3
(8) |
10
(13) |
16
(20) |
25
(32) |
35
(44) |
50
(63) |
63
(79) |
0.1 |
--- |
--- |
--- |
--- |
® |
4 X 7
|
4 X 7
|
0.22 |
--- |
--- |
--- |
--- |
® |
4 X 7
|
4 X 7
|
0.33 |
--- |
--- |
--- |
--- |
® |
4 X 7
|
4 X 7
|
0.47 |
--- |
--- |
--- |
--- |
® |
4 X 7
|
4 X 7
|
1.0 |
--- |
--- |
--- |
--- |
® |
4 X 7
|
4 X 7
|
2.2 |
--- |
--- |
--- |
--- |
® |
4 X 7
|
4 X 7
|
3.3 |
--- |
--- |
--- |
--- |
® |
4 X 7
|
4 X 7
|
4.7 |
--- |
--- |
® |
4 X 7
|
4 X 7
|
5 X 7
|
5 X 7
|
10 |
--- |
® |
4 X 7
|
5 X 7
|
5 X 7
|
6.3 X 7
|
6.3 X 7
|
22 |
4 X 7
|
5 X 7
|
5 X 7
|
6.3 X 7
|
6.3 X 7
|
6.3 X 7
|
--- |
33 |
5 X 7
|
5 X 7
|
6.3 X 7
|
6.3 X 7
|
6.3 X 7
|
8 X 7
|
--- |
47 |
5 X 7
|
6.3 X 7
|
6.3 X 7
|
6.3 X 7
|
8 X 7
|
8 X 9
|
--- |
100 |
6.3 X 7
|
6.3 X 7
|
6.3 X 7
|
8 X 9
|
--- |
--- |
--- |
220 |
8 X 7
|
8 X 7
|
8 X 9
|
--- |
--- |
--- |
--- |
330 |
8 X 7
|
8 X 7
|
8 X 9
|
--- |
--- |
--- |
--- |
470 |
8 X 9
|
8 X 9
|
--- |
--- |
--- |
--- |
--- |
l All blank
voltage on sleeve marking is the same voltage as “ ® ” point to.
l
空格部分膠管所標示的電壓以“ ® ”右方一格表示

|
Sang Jing Electronics Co., Ltd.
