B03R series Radial Type Bi-Polarized
                                 無極性立式標準品

l 適用於極性反轉回路,例如:信號交連或HI-FI高級音響設備如
     喇叭、分音器等。
l 具容量誤差小,頻率響應高之特質。

l B03R series capacitors are suitable for crossover network,
    HI-FI audio equipment, speakers, and etc.
l With excellent frequency characteristic and small deviation
    of capacitance.



                              p44 ERC.jpg (16022 bytes)
specifications

No.

Item

Performance



1


使用溫度範圍
Operating
Temperature Range



-40 to+85º c



2


額定電壓範圍
Rated Working
Voltage Range



50
100v.DC



3


靜電容量範圍
Nominal Capacitance
Range



1.0
150µ F



4


靜電容量容許差
Capacitance Tolerance



±
2.5%(H)   ± 5%(J)    ± 10%(K) ± 20%(M)         (at+20°c ,1KHz)


5


漏洩電流
Leakage Current


I
£ 0.04CV + 3(µ A) after charge five minutes



6


損失角
Dissipation Factor (tan
)
(1KHz\+20ºc)



£ 0.03






7





高溫負荷特性
High Temperature
Loading



   After 2000hrs. application of DC rated working voltage at +85º c,
   Post test requirements at +20º c ~ +25º c
   The capacitor shall meet the following limits:

  Leakage current £ the   initial specified value
  Capacitance change £ ± 20% of  initial measured value
  Dissipation Factor(tan) £150% of  initial specified value





8



高溫無負荷特性
Shelf Life


   After storage for 500hrs. at +85º c with no voltage applied.
   Post test requirements at +20º c ~ +25º c
   Same limits as high temperature loading.


B03R series Radial Type Bi-Polarized     無極性立式標準品

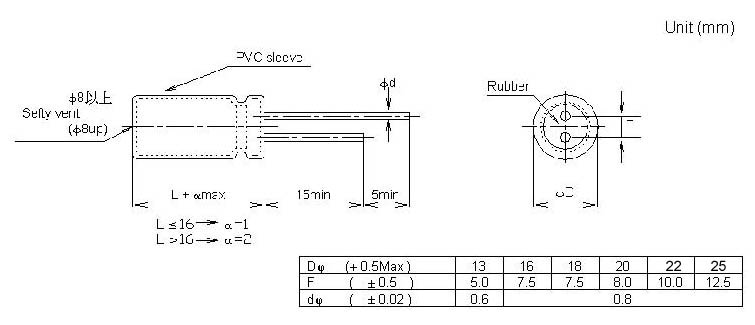

Diagram of Dimensions



Case Size Table                                                                                  øD x L(mm)

        W.V.(SV)

µ F

50

(63)

100

(125)

1.0

13 X 21

13 X 21

1.5

13 X 21

13 X 21

2.2

13 X 21

13 X 21

2.7

13 X 21

13 X 21

3.3

13 X 21

13 X 21

3.9

13 X 21

13 X 21

4.7

13 X 26

13 X 26

5.6

13 X 26

13 X 26

6.8

13 X 26

13 X 26

7.5

13 X 26

13 X 26

8.2

13 X 26

13 X 26

10

16 X 27

16 X 27

12

16 X 27

16 X 27

15

16 X 27

16 X 27

18

16 X 27

16 X 27

22

16 X 36

16 X 36

27

16 X 36

16 X 36

33

16 X 36

16 X 36

47

18 X 36

18 X 36

56

18 X 36

18 X 36

68

22 X 37

22 X 37

75

22 X 37

22 X 37

82

22 X 37

22 X 37

100

22 X 37

22 X 37

120

25 X 45

25 X 45

150

25 X 45

25 X 45

  • The above table for standard value .
  • Any special value are acceptable, Its size to be provided upon requested.
